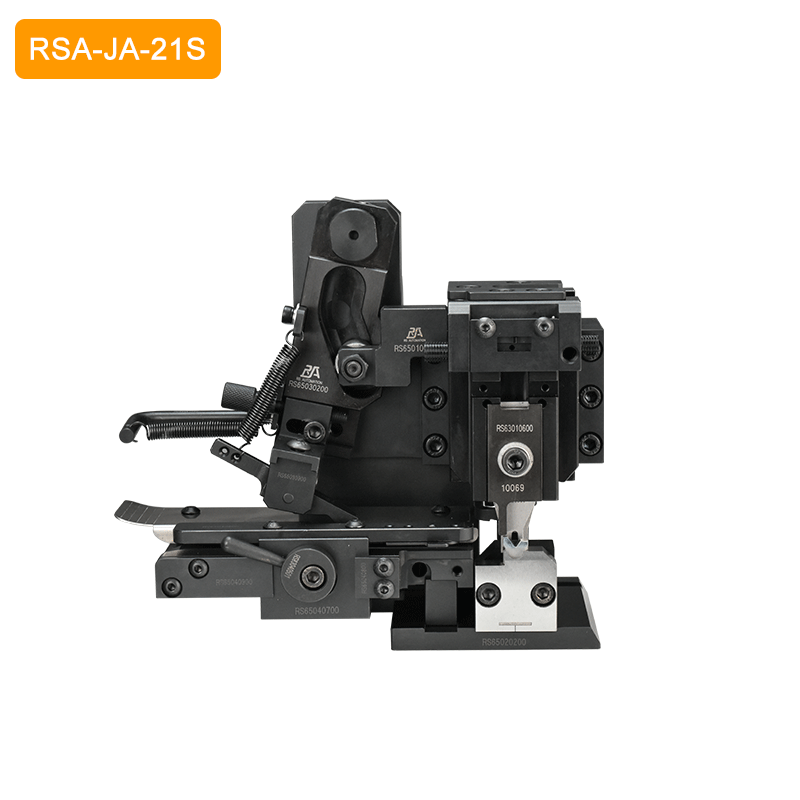

Terminal Crimping Applicator RSA-JA-21S

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
  • Continuous crimping height adjustment provides a 0.02mm resolution for C.H./I.H. with a 2.0mm range, which meet every rigorous demand on the crimping.
  • Optimized design to lower terminal waste and reduce cost.

  • Modular framework to make adjustment and maintenance easier.
  • Save repeated invest. It can work for semi-automatic and fully automatic crimping machine for Komax, AMP, Mecal and so on;
  • Each applicator delivered will be attached with a terminal cross section analysis report.
  • Special surface treatment to ensure strong corrosion resistance.
  • Lower maintenance cost. Special surface treatment to ensure strong corrosion resistance.
  • Each spare part has its own P/N number for easier maintenance.

Specification
Model RSA-JA-21S
Feed Type Side feed
Stroke 30 mm
Shut Height 119.7mm
Wire Size 0.08-6mm²
Terminal Thickness 0-1.0mm
Feeding System Machanical
Terminal Pitch
 22mm
Weight 5.1KG
Dimension L190mm×W95mm×H170mm

PDF Specification Download
RSA-JA-21S.Pdf
