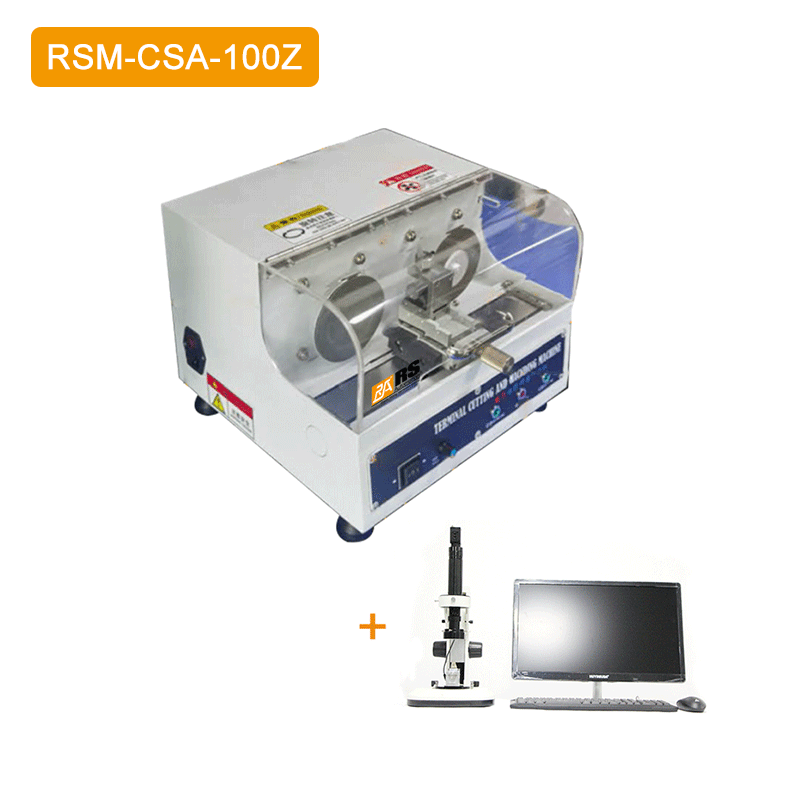

Terminal Cross Section Analyzer（Vertical cutting design）RSM-CSA-100Z

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
Electric terminal cutting with motor drive, to solve the slow and laborious hand machine.
Using Grade 100 marble base to ensure that the cutting position is aligned
Safety and intelligent equipment can get the smoothness of cutting and grinding
Use a linear guide rail to ensure installation accuracy.
Easy to install and operationAdopt to optional megapixel industrial camera to capture HD photos
Specification
Model RSM-CSA-100Z
Applicable Wire o.D.
 0.01mm²-70.00mm²(Ø 0.10mm - Ø 20.00mm)
Cutting Rotate Speed 2800 rpm
Cutting Speed Electric adjustable
Cutting wheel φ100 * 0.5 *φ16mm
Grinding Speed 1400 rpm
Grinding Incremental Range
 0.0mm - 20.0mm
Grinding paper
 1000#/2000# (optional)
Terminal cross section corrosion time
 5-30 sec
Terminal cross section analyer Voltage
 AC 230 V
Terminal cross section analyer Frequency
 50Hz
Terminal cross section analyer Power
 600W
Terminal cross section analyer weight
 About 30 kg
Terminal cross section analyer dimension
 500mm (L) x 350mm (W)x 350mm (H)
Camera
 Optional megapixel industrial camera
Camera standard magnification times
 About 20-200x
Lens magnification
 0.7X,1x,2x,3x,4x,4.5X
Camera Standard observation range
 0.01mm²-50.00mm²

PDF Specification Download
RSM-CSA-100Z.Pdf
Terminal Cross-Section Analysis Report (Sample).Pdf
Video
RSM-CSA-100Z.Mp4
